Radio Control, Transparent Data Link, Video, Maps, Navigation
To Work up 100Km
*Range RC max 250Km
V3: New version for 2023

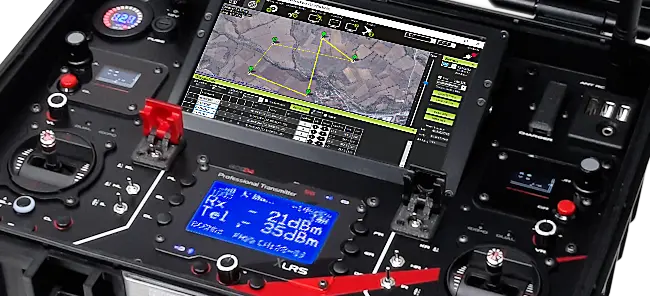

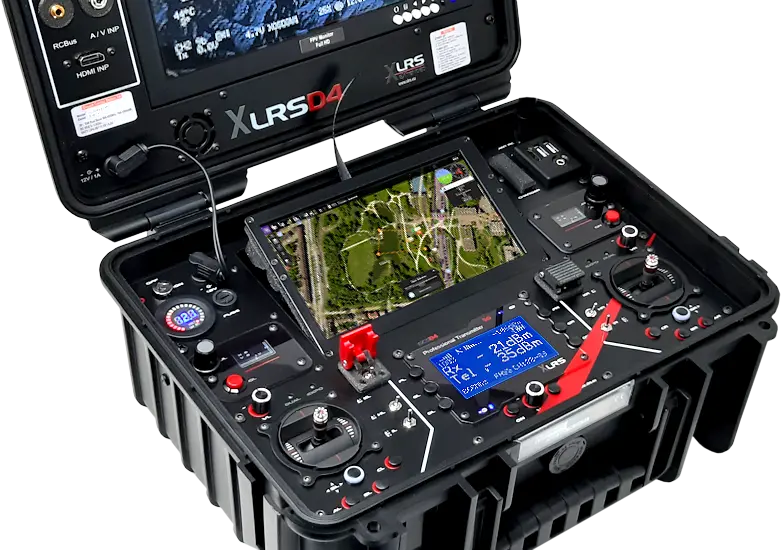

The new Ground control Station of the D4 series in its Version 3 for 2023 maintains its traditional look and size.
The rest is all new or updated. It connects to new peripherals such as long-range full HD Digital Video and the powerful Smart Antenna Tracker.
There are very interesting and useful changes since it has been practically renewed in its entirety, hardware, electronics, firmware, battery, functionalities, etc. endowing it with more duration, interfaces, functions and greater capacity for the new and more advanced missions.
New 6th Generation radio modem
The Radio Control and telemetry system are independent of the PC and have their own microcontrollers, this increases security against system crashes or PC crashes.
Digital Video is independent of the PC and the Radio Control system.
In the version with radio modem now the module is interchangeable.

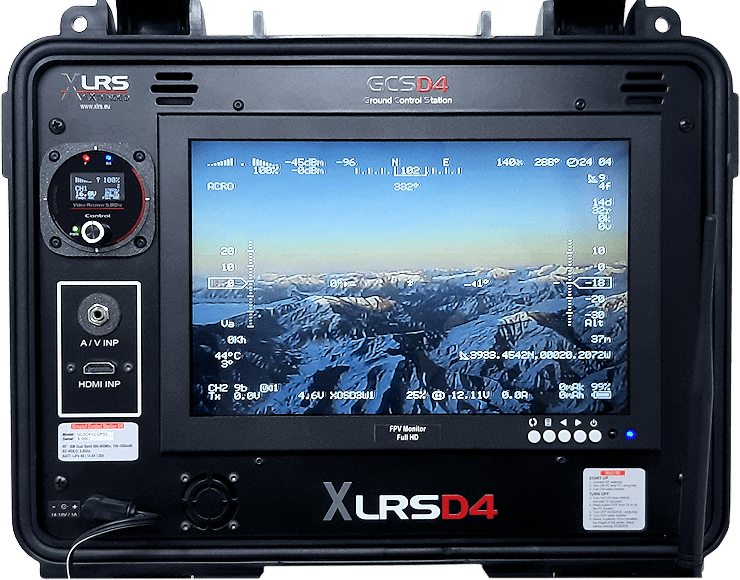

Display Panel
The 10″ display is IPS full HD is the same as in the previous version since its quality and brightness are exceptional.
600 nits and 1000:1 contrast with 160º viewing angle.
It can connect to analog video or Digital video.
Video connections: Jack for analog Audio / Video input, one HDMI input connector (To connect to the PC and have a second screen) and one HDMI input connector (For digital video receiver).
Instrument: New, now with a 1.5″ color TFT IPS display with a larger size and higher resolution than previous versions.
New concept by which this instrument can display and control various parts of the system, such as video, batteries, RF systems, alarms, etc.
GCSD4V3 there are 2 models
GCSD4V3RI has a built-in radio modem.
GCSD4V3ST with XVTR receiver, Video Full HD and SATPROFHD, Smart Antenna Tracker
or
GCSD4V3ST with RC receiver, Analog Long Range Video and SATPROAV, Smart Antenna Tracker
GCSD4s are part of the D4 system along with other products.
To better select the model you need, we recommend you access the D4 system page where there is general information and a product selector.
But if you want the best performance and range, use SATPRO a robust tracking antenna with a built-in radio modem and digital or analog video. More info…

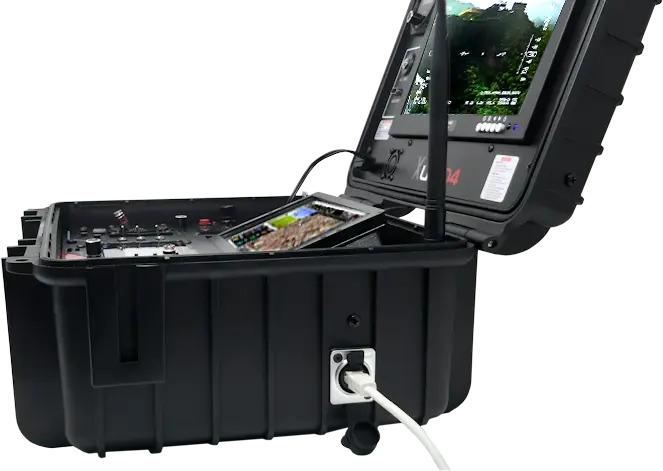

Suitcase
Robust suitcase, dustproof and waterproof with IP67 certification, it has several fans to control the internal temperature.
Certified with STANAG 4280, DEF STAN 81-41 and ATA 300 standards.
Automatic air pressure compensation valve.
Temperature resistant from -30 ° to + 80 ° C.
Rubber handle for easy transport, optionally a transport belt can be used.
2 eyelets for padlocks (Ø 7.62 millimeters).
Dimensions: 36.5 x 29.4 x 17 centimeters.

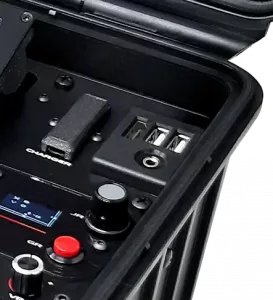

Connectivity V3:
The connectivity of the V3 is much superior to the previous versions in addition to the usual interfaces: Ethernet PC, Ethernet RC, RCBus, COMs, now it has WIFI, LTE, SATCOM, HDMI, WHDMI that give you a new world of possibilities.

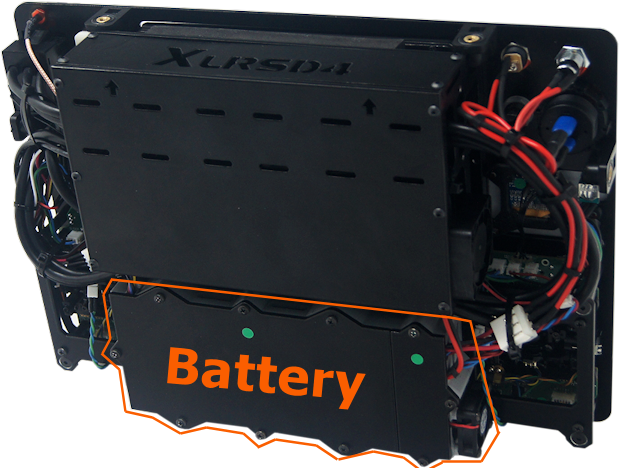

The battery can be charged with the supplied charger or with any standard charger for LiOn 4s on the market.
SATPRO
It can now be used with the SATPRO Smart Antenna tracker which provides another level of product performance.
GCSD4 versions:
GCSD4V1: Out of production.
GCSD4V2: Currently in production. Normal delivery time from 15 to 30 days. More info GCSD4V2.
GCSD4V3: Delivery time approx: 60 days. You can now reserve your order.
GCSD4V3 New Models
GCSD4V3RI: GCSD4 with internal radio modem with option to use analog video. More Info | Buy Now
GCSD4V3ST: GCSD4 with Smart Antenna Tracker SATPRO. Full HD digital or analog video options. More Info | Buy Now
Digital Video Full HD option included in SATPROFHD. Ranges: 15Km, 30Km, 50Km, 100Km or 150Km. It has a Wireless HDMI extender up to 30m without delay so as not to use HDMI cable from SATPRO.
Optionally XVID analog video included in SATPROAV for ranges from 30Km to more than 100km.
GCSD4 Evolution:
GCSD4V1. The first version was manufactured in January 2018 with 5th generation radio modems.
At first the GCSD4V1 always carried RF, it could be connected to an external antenna with a tripod at no more than 3 meters since the antenna cable has losses.
GCSD4V2 in 2019 is improved, the weight was lowered and optionally it is connected by RCBus without losses to an SMBTS in the antenna itself with a manual tripod that increases safety and range compared to having the RF in the suitcase. Ethernet connection option was added. More info GCSD4V2.
GCSD4V3 is new for 2023, uses the new 6th generation radio modems, has all the IPS color displays, updated software, redesigned electronics, better battery and maintains the option with integrated RF but also interchangeable.
Data Sheet
GCSD4V3RI (Internal Radio Modem)
Customized projects
Depending on the project and quantity, we can manufacture customized GCS, if you are interested contact us sales@dmd.es.
Shop XLRS
GCSD4V3RI. Professional Ground Control Station D4 V3 with integrated radio (100Km).
4.035,00€ – 5.838,00€GCSD4V3ST. Professional Ground Control Station D4 V3 with Smart Antenna Tracker.
