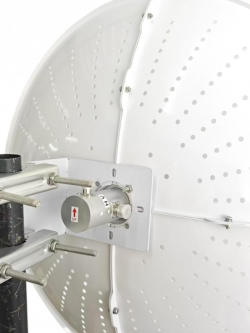

ANTMI2225G24DB. 2×2 MIMO Parabolic Antenna 2.2-2.5GHz 24dBi.

SPECIFICATION:

24 dBi polarization dish antenna with 2N-Female connector.

Frequency range: 2.200-2.500Mhz.

Nominal Impedance: 50Ω.

Horizontal lobe width: 11º.

Vertical surface lobe width: 15º.

Front / Back ratio: ≥31dB.

Polarization: Vertical + Horizontal / Vertical + Horizontal.

Gain: 24 dBi*2.

Bandwidth: 300Mhz.

Max power: 100W.

MECHANICAL DATA:

Connector: N-Female *2.

Rated Wind Velocity wind stregth: 60m/s

Support Rod Diameter/Mounting: Ø35-50mm.

Weight: 8Kg.

Dimensions: Φ0.9m.

CONTENT:

x1 ANTMI2225G24DB.
