SATPROV3

━━━ PRODUCT · ANTENNA TRACKER

SATPROV3 — Dual-axis antenna tracker with absolute positioning.

Professional antenna tracker that keeps the communications link pointed at the vehicle autonomously, in long-range operations with unmanned aerial, ground and maritime platforms. For manufacturers, integrators, official agencies, R&D centres and defense programmes.

Azimuth
360° continuous
Pointing IN BOTH AXES
≤1°
Autonomy
8–10 h
Protection
IP54
Elevation

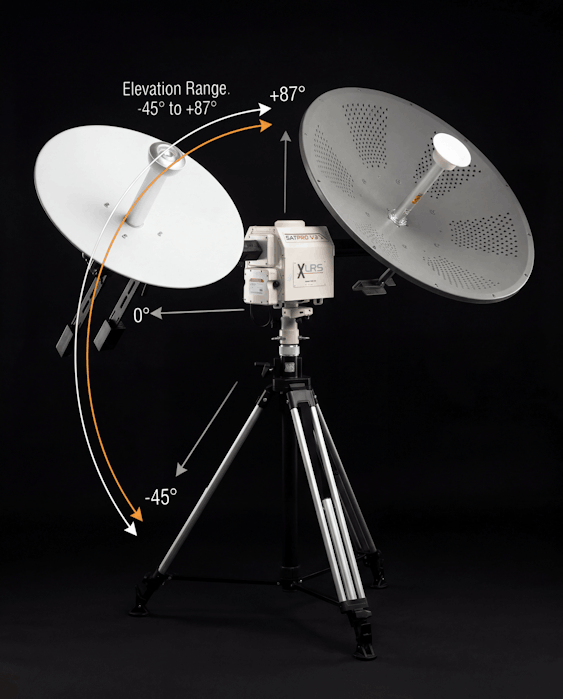

−45° to +87°
Tracking speed
Up to 15°/s
Payload
Up to 14 kg
(with counterweight)

Works with the WMX481V3 or third-party radios · Serial TTL (transparent / MAVLink) · Ethernet TCP-UDP API

REQUEST INFORMATION

ISO 9001               /               DUAL – USE               /               100%  EUROPEAN  MANUFACTURING               /               SINCE 1992

━━━ THE PRODUCT

Autonomous pointing, operational at once.



SATPROV3 is a professional dual-axis antenna tracker with absolute positioning. Unlike trackers that require a homing routine at start-up, it resolves its exact orientation immediately: the operator points the head roughly toward geographic north before powering on — and from that moment, as soon as GPS/telemetry data arrives, the system begins automatic, continuous tracking with no further calibrations.

Operationally this means zero start-up delay, no drift after a power cut, lower operator workload and lower risk of link loss at the critical moment. The system keeps the antenna pointed at the vehicle throughout the mission, preserving the command and video link at extended distances.

It is built for field deployment: a robust structure with quick-release arms, IP54 protection and thermal management for outdoor operation. Control is flexible — autonomous by telemetry, via network API, or hybrid — and it integrates with the XLRS ecosystem and with third-party radios and links.

━━━ WHY SATPROV3

Professional performance, with manufacturer control.

EUROPEAN MANUFACTURER, FULL CONTROL

In-house design, manufacturing and support in Spain (EU). Not a re-assembly of third-party parts: full control of engineering, quality and integration.

PROVEN ABSOLUTE POSITIONING

No homing, no drift: lower operational risk, operational at once and stable tracking. Mature technology, refined in real operation.

PERFORMANCE / COST RATIO

Professional dual-axis performance with a competitive performance-to-cost ratio versus higher-priced systems.

FIELD-READY AND CUSTOMISABLE

A complete kit deployable in minutes and customisable to your project (finish, RF, firmware, IP rating) for orders and programmes.

DEPLOYED IN ACTIVE DEFENSE PROGRAMMES

Integrated with VTOL platforms by European defense integrators in real operational environments.

━━━ DEPLOYMENT & SET-UP

Operational in minutes.

01 — ORIENT

Mount on the TRI276 tripod and aim roughly at geographic north. No tools: quick-release antenna arms.

02 — POSITION

On power-on, absolute positioning gives exact orientation at once. With GPS/telemetry data, the system knows where the vehicle is.

03 — AUTOMATIC POINTING

Begins autonomous, continuous tracking (azimuth/elevation), keeping the link pointed throughout the mission.

━━━ INTEGRATION & CONTROL

Feeds GPS from any source. Controls from any interface.

SERIAL TTL · TRANSPARENT

Third-party radio · no MAVLink · requires CTRCB + CURCB

Third-party radio without MAVLink connected via CTRCB adapter (TTL → RCBus). The GPS stream reaches the PC via CURCB (USB/COM). The PC application parses the incoming data and forwards the vehicle position to SATPROV3 over the network using the GPSOBJ command (TCP/UDP). Compatible with any radio with TTL serial output.

SERIAL TTL · MAVLINK

Third-party radio with MAVLink · requires CTRCB — XLRS WMX481V3 · direct, no adapter

SATPROV3 reads MAVLink GPS/telemetry natively and begins tracking automatically. Third-party radios connect via CTRCB adapter (TTL → RCBus); ground mapping software (Mission Planner, QGroundControl, UgCS) can connect simultaneously via CURCB (USB). The XLRS WMX481V3 connects directly via RCBus and Ethernet — no adapter required.

ETHERNET / API TCP-UDP

Any source connected to the SATPROV3 network

The data source connects to the SATPROV3 network. The PC application receives GPS data from any source and forwards the vehicle position to SATPROV3’s IP using the GPSOBJ command (TCP/UDP). Also supports MAVLink over network, NMEA, and direct azimuth/elevation axis commands. Works with custom GCS, mission software or supervision platforms.

In every mode, the operator points the head roughly toward geographic north before powering on — the system resolves absolute pointing from that reference, with no additional steps.

━━━ MANAGEMENT SOFTWARE

Dedicated PC application included.

The SATPROV3 is managed from the XLRS_SATPRO software, PC application: real-time monitoring of azimuth/elevation position, tracking mode, GPS reception status, battery and system alarms. Manual overrides, API command console and firmware update from the same interface.

━━━ SEE IT IN ACTION

SATPROV3

Two operation examples — recorded with the previous SATPROV2 generation. Tracking behaviour, interfaces and deployment process are equivalent to the current version.

━━━ KEY FEATURES

Built to operate, not to configure.

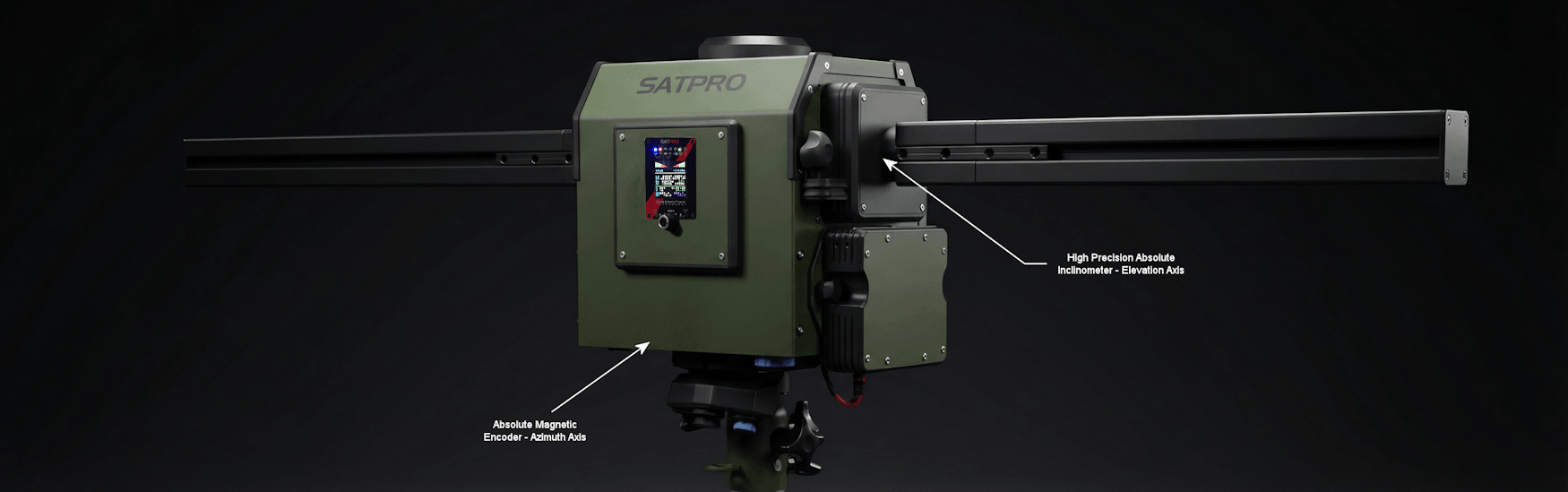

ABSOLUTE POSITIONING

Magnetic encoder + inclinometer. No mechanical homing: operational at once and no drift after power cuts.

HIGH-PRECISION DUAL AXIS

Pointing ≤1° in azimuth and in elevation. Tracking speed up to 15°/s.

TOOL-FREE RAPID DEPLOYMENT

Quick-release arms and reinforced TRI276 tripod. Ready to operate in minutes.

IP54 + THERMAL MANAGEMENT

IP54 protection: resists dust and light rain. Thermal management for cold and heat (−20 to +55 °C), with intelligent heating and ventilation.

FLEXIBLE CONTROL

Autonomous by MAVLink telemetry, TCP/UDP API, or hybrid mode. Compatible with XLRS and third-party systems.

8–10 H AUTONOMY

Internal Li-Ion battery with 8–10 h of operation, plus external power input for extended deployments.

━━━ TECHNICAL SPECIFICATIONS

The relevant data.

Positioning Azimuth 360° continuous · Elevation −45° to +87° · Pointing ≤1° in both axes · No homing
Mechanics Tracking speed up to 15°/s · Payload up to 14 kg (with counterweight)
Connectivity / control Dual Ethernet · RCBUS · Serial TTL · USB (firmware) · MAVLink / TCP-UDP API / hybrid
Power Li-Ion 4S 14.8 V / 4800 mAh · 8–10 h · external input 14.8–24 VDC
Environmental / physical IP54 · −20 to +55 °C · humidity ≤95% · weight ~14.5 kg (head) / ~21.5 kg with tripod · height up to 3.2 m

Full specifications available in the datasheet on request.

━━━ COMPLETE SYSTEM

A set ready to deploy.

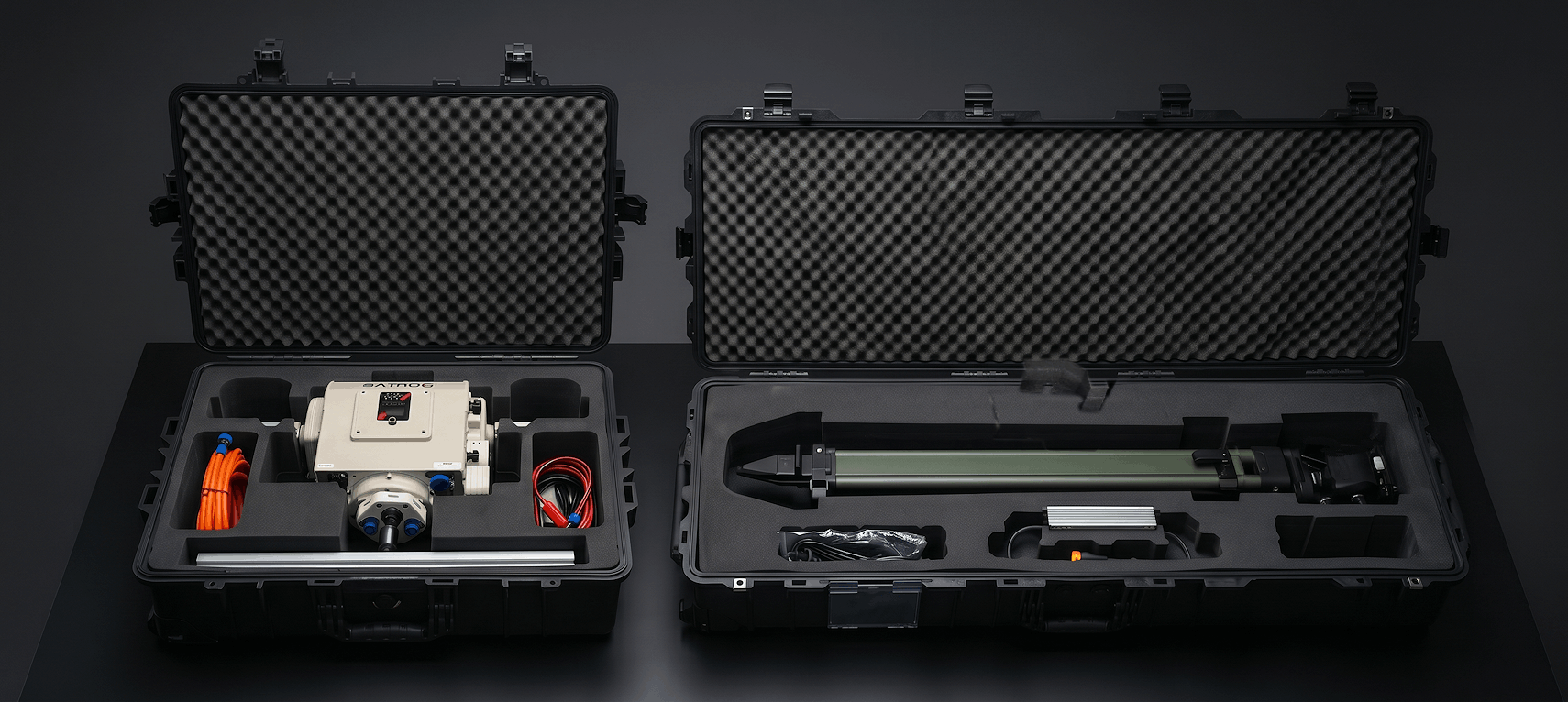

STANDARD DELIVERY

SATPROV3 tracker head with internal battery · dual antenna arms (aluminium profiles) · reinforced TRI276 tripod · RCBUS and Ethernet cables · external battery cable · charger · rigid transport cases with custom foam.

VERSATILE MOUNTING

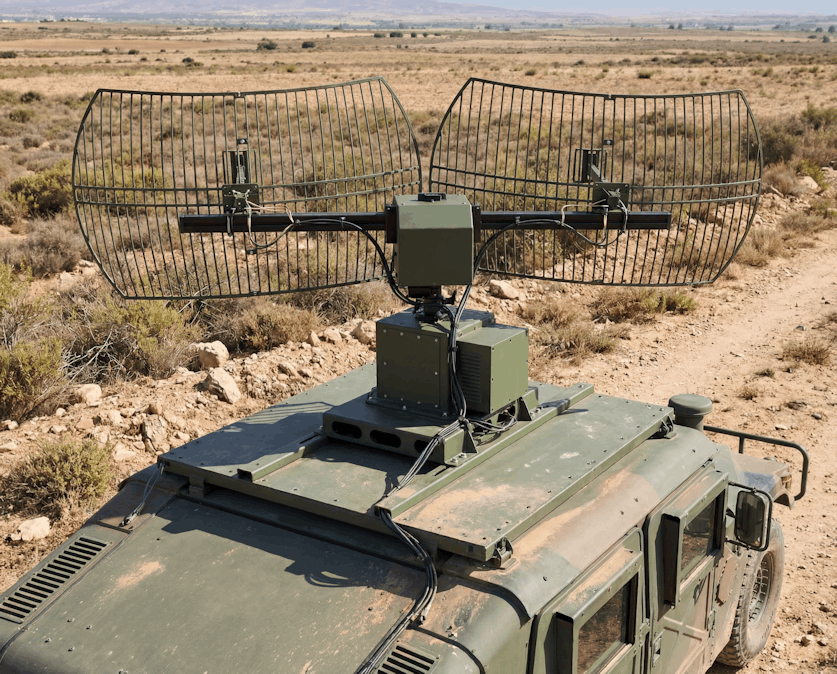

TRI276 tripod (standard). Under technical evaluation: ground vehicle, mast, building/rooftop, container or fixed installation. Ground anchors, heavy stakes and steel links to pin and stabilise the tripod against wind.

OPTIONS

CTRCB (TTL-Serial → RCBUS) and CURCB (USB → RCBUS) modules · counterweight kit · XLRS data links and RF/telemetry accessories. Everything ships in rigid cases with custom foam.

━━━ COMPATIBILITY & RELATED SYSTEMS

Part of the XLRS ecosystem.

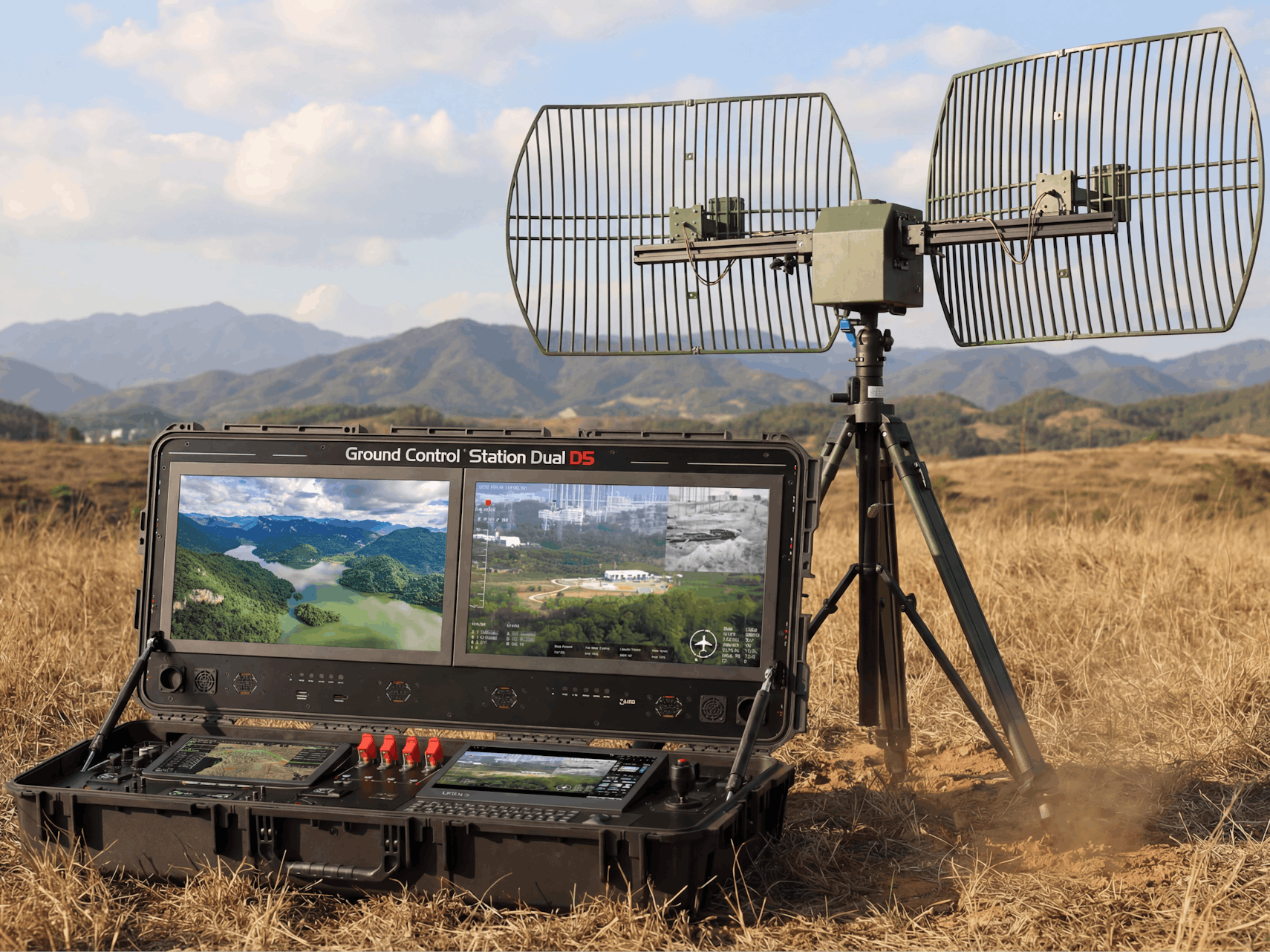

SATPROV3 integrates natively with the WMX481V3, C2 + Data Link, the GCSD5 and GCSD5DUAL control stations, and the XVHD Full HD video system; also with third-party radios and links through open interfaces.

Interfaces: Ethernet · RCBUS · Serial TTL · optional CTRCB / CURCB modules

WMX481V3

C2 + Data Link

VIEW

GCSD5 / GCSD5DUAL

Ground control station

VIEW

XVHD

Full HD video link

VIEW
VIEW

━━━ APPLICATIONS

Where it is deployed.

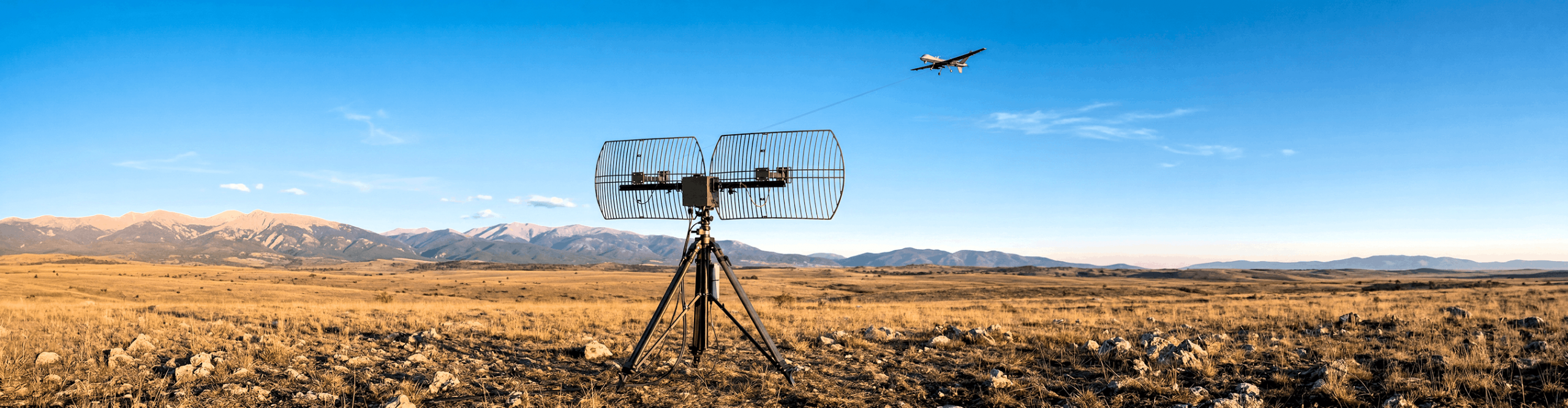

Long-range UAV (ISR, surveillance, inspection)
Mobile and tactical units (UGV, tripod)
Fixed installation (border, perimeter security)
Maritime

━ MANUFACTURING & CUSTOMISATION

Design, manufacturing and validation under one roof.

SATPROV3 is designed, manufactured and supported by Digital Micro Devices at its own 1.650 m² facility in Spain (EU), with more than three decades of experience.

LEARN MORE ABOUT FACILITIES →

STANDARD

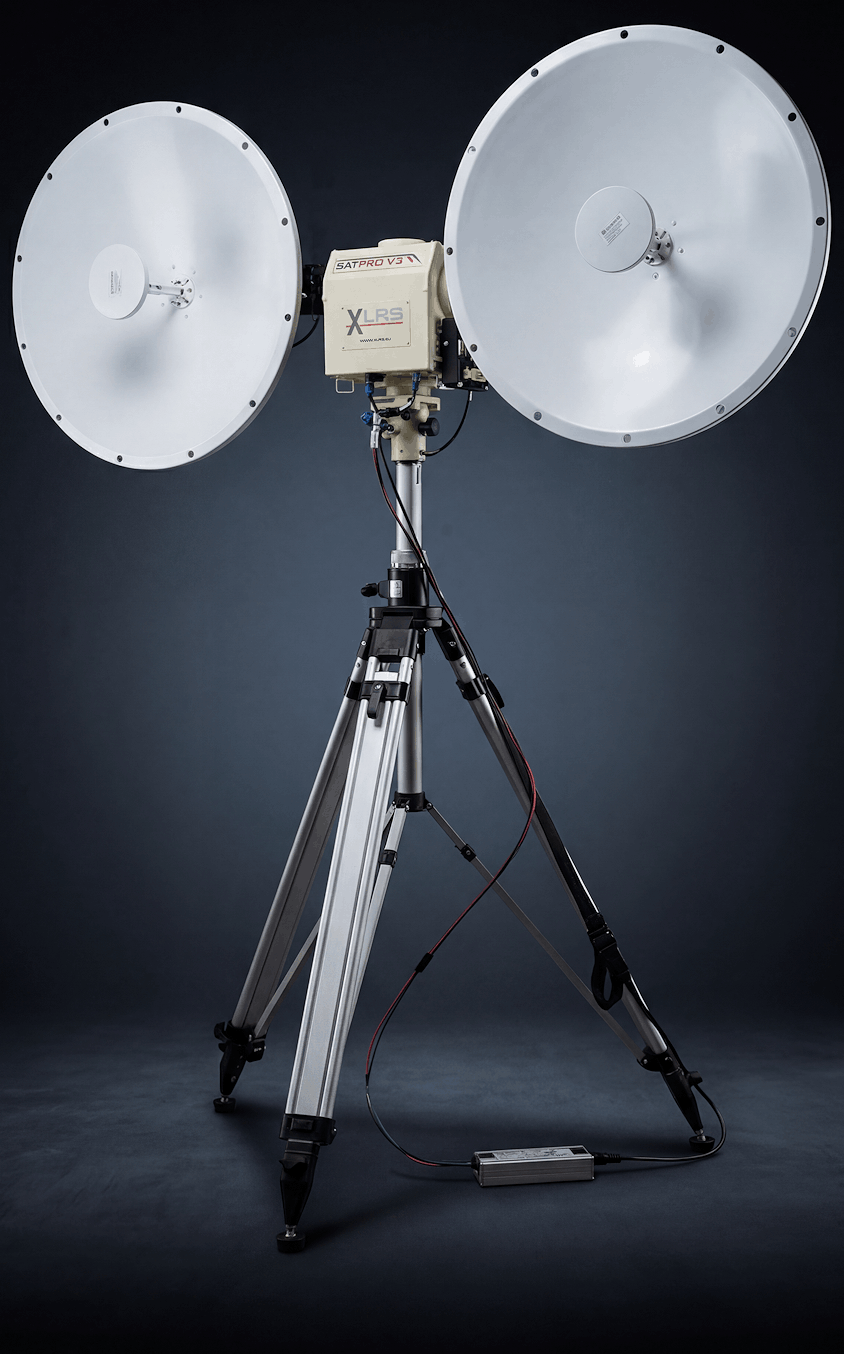

Ivory/white finish · black/grey TRI276 tripod. Standard configuration.

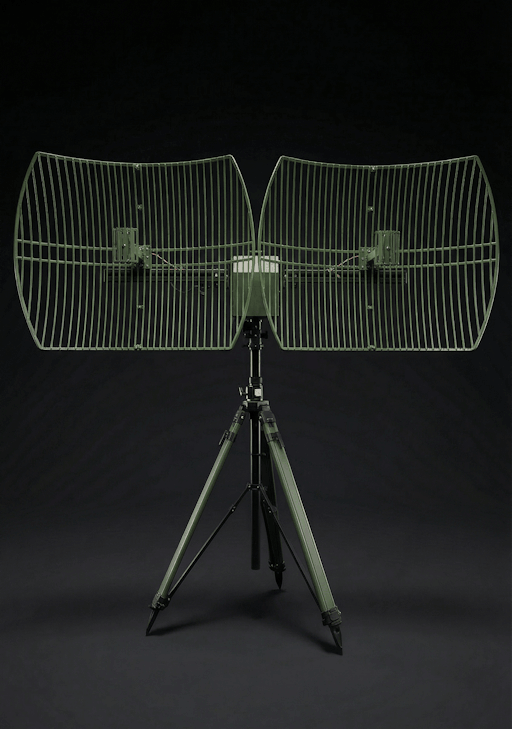

MILITARY VERSION

(on request · minimum quantities)

Military green finish. Same system, same performance — finish adapted to tactical and camouflage requirements.

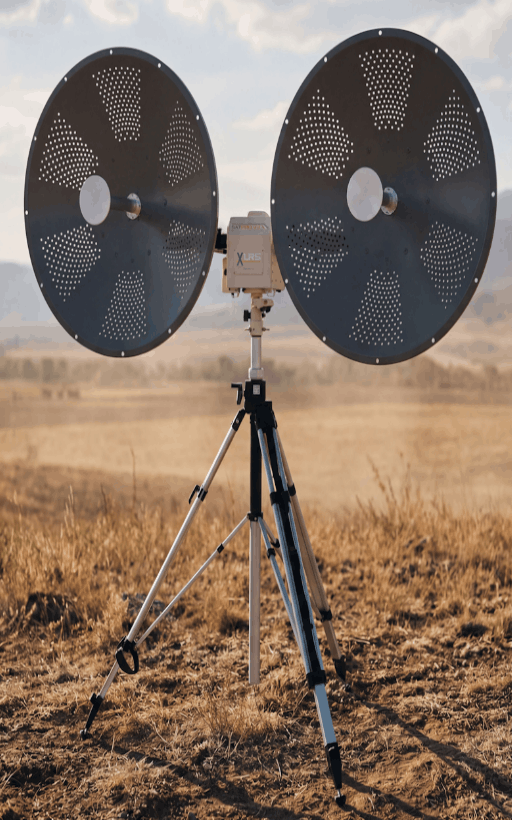

CUSTOM

(project · engineering on request)

Specific RAL colour, hardware modifications (structure, IP rating, payload, RF, firmware), OEM branding. Subject to project scope and minimum order.

SUPPORT & LIFECYCLE

Direct manufacturer support (support@dmd.es) and long-term supply programmes — relevant for integrators and agencies that need continuity.

━━━ TECHNICAL CONSULTATION

Evaluating SATPROV3 for your platform or programme?

Tell us your application and the range you need. We will send the complete datasheet and technical documentation. Our engineering team handles enquiries directly, without intermediaries.

▶ REQUEST INFORMATION

Or write to us directly on WhatsApp

To start the conversation, please include your name, company, corporate email and website in the message.

▶ WHATSAPP CONSULTATION
