KITXLRSD3V2. Remote Controller XPAD3V2 and Receiver RXLRS, Radio Control and Mavlink / Transparent Data Link (25-50Km), Max.200km.
2.308,00€ – 2.378,00€

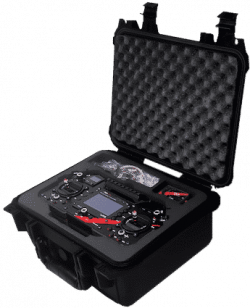

Remote controller XPAD3V2 and RXLRS Receiver.
It is a professional system, elegant design with personality and robust prepared for all types of applications FPV to work between 25-50Km (LOS) and with a maximum range of 200km.
Click here to see more information
*Monitor not included.
Delivery date: Can be shipped within 15-25 days.
If you need an urgent delivery time, we can do it but it has an additional cost for more information contact us sales@dmd.es.
| Weight | 3,5 kg |
|---|---|
| Dimensions | 450 × 350 × 250 mm |
| Frequency | 433Mhz, 866-950Mhz |
| RF Power & Sensitivity | 1000mW (+30dBm) | -116dBm |
| Antenna | BQ89 (Biquad antenna 866-920Mhz, 9dBi), MX433 (Moxon Rectangle Antenna 400-480Mhz, 5.5dBi), Omnidirectional |
* The final content of the product will depend on the options selected.
x1 XPAD3V2. Professional Remote Controller Radio Control, Mavlink Telemetry / Transparent Data Link, AES128 Encryption, Bluetooth, SPPM, RCB, SMA-F, USB.
x1 RXLRS. Professional RX, Radio Control, Mavlink Telemetry / Transparent Data Link , AES128 Encryption, 8CH, SPPM, RCB, SMA-F, USB.
x2 ANTGSM900. Omnidirectional antenna 868-928Mhz, 5dBi or x2 ANTGSM43. Omnidirectional antenna 433Mhz, 5dBi.
(Optional) x1 BQ89. (Biquad antenna 866-920Mhz, 9dBi) or MX433 (Moxon Rectangle Antenna 400-480Mhz, 5.5dBi), Omnidirectional.
x1 LAT54_SMAH/SMAM. Cable SMA-Female to SMA-Male, 540mm.
x1 CABLE_SERVO_HH. Cable Servo RC Female to Female.
x1 CABLE_EXT_SERVO_MH. Extensor Cable Servo RC Male to Female.
x1 CHARXP. USB Charger for XLRS Transmitters, 5V – 1A.
x1 CABLE_USB/MICROUSB. Cable USB-A Male to Micro USB-B Male, 2m.
x1 CABLE_PX_RX. Adapter cable for pixhawk and RXLRS (Mavlink Telemetry)
x1 XLRS Neck Lanyard for remote controller.
