Built-in 5.8Ghz Dual diversity receiver automatically for best reception.
Built-in 2CH 5.8Ghz AV output and 1CH AV input.
Built-in high performance Li-POLYMER Battery: 1200mAH/3.7V.
Work status OSD display: RSSI indication | Battery indicator | Channel indication.
A key to automatic signal search.
Support: Chinese and English menu.
Screen size: 7”.
Screen type: TFT LCD Screen/long life, LED backlight.
View Angle: 140/120degree (Horizontal/Vertical).
Size: 180mm x 120mm x 50mm (Sunshield height: 28mm).
Working Voltage: DC 7~16V.
Power Consumption: max 650 mA @12V.
Battery charging current: 850mA @12V ( max ).
Working temperature: -10℃~+ 65 ℃.
Connectors: RP-SMA female (outer needle).
Antennas Connectors: RP-SMA male (inner hole).
Screen size: 7″.
Display type: TFT LCD display / long life, LED backlight.
Resolution: 800 * 480
Brightness: 450cd or 600cd / m2.
Viewing angle: 140/120 degrees (horizontal / vertical).
You can receive 2 different channels at the same time.
It isn’t affected by 2.4GHz R / C radios.

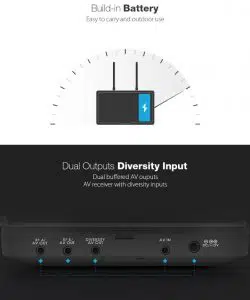

AV receiver with diversity inputs.
Small, light, durable.
4 bands and a total of 32 channels.
Built-in battery, easy to transport and use outdoors.
Automatic signal search, simple operation.
OSD display of the working status: Always take into account the working conditions of the device.
x1 7″ LCD Screen Receiver Monitor with built in Rechargable Battery.
x2 5.8G Antenna.
x2 AV Cable.
Delivery date: Can be shipped within 3-5 days.
|Dimensions||210 × 220 × 60 mm|
1.2Ghz, 2.4Ghz, 5.8Ghz
