SY-910. Base Station 10 elements Yagi Antenna 698-960Mhz, 12.9-15dBi.

SY-910. Base Station 10 elements Yagi Antenna 698-960Mhz, 12.9-15dBi.

Base station antennas conceived for LTE 700, ISM 868 MHz, AMPS, GSM 900 systems working on 698-960 MHz. The boom and the parasitic elements are made of aluminium
and radiant dipole is realized on PCB in Microstrip technology protected by thermoplastic.

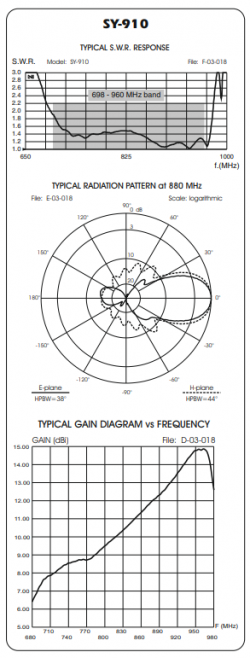

ELECTRICAL DATA:

Type: 10 Elements Yagi.

Frequency range: 698-960Mhz (LTE 700, ISM, AMPS, GSM900).

Impedance: 50Ω.

Radiation (H-Plane) beamwidht @-3dB: 44º @ 880Mhz .

Radiation (E-Plane) beamwidht @-3dB: 38º @ 880Mhz.

Front to back ratio: ≥13dB @ 698-880Mhz. | ≥15dB @ 880-960Mhz.

Polarization: Linear Vertical.

Gain: 11.85 – 14 dBi.

Max power (CW) @30ºC: 10Watts.

Grounding Protection: All metals parts are DC-grounded, the inner conductor shows a DC short.

Connector: FME-Male.

MECHANICAL DATA:

Housing & Radome Material: Aluminium, PCB, Thermoplastic.

Bracket & Hardware Material: Galvanized Steel.

Wind Load @ 150km/h: 48N.

Wind Resistance: 150Km/h.

Wind Surface: 0.03m².

Dimensions W x H (Approx.): 210 x 995 x 60mm.

Turning radius (Approx.): 960mm.

Weight (Approx.): 500gr.

Operating temperature: -20ºC to +80ºC.

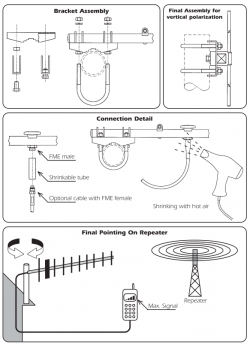

Mounting Mast: Ø25-42mm with U-Bolt.

CONTENT:

x1 SY910. Yagi antenna.
