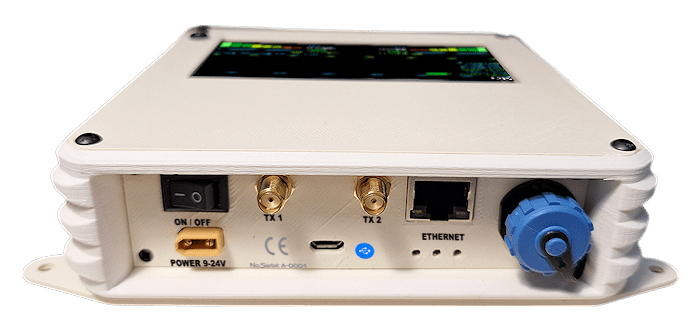

WMX481. Transmitter radio module for connection and communication with XLRS Remote Controllers, GCS or SATPRO.
The WMX481 transmitter module connects and communicates via RCBUS cable to your remote controller, GCS or SATPRO.
Connection with modified remote controllers or GCS: WMX481 it has a male SP13 connector and connects via a 5 meter RCBUS cable with SP13 female connectors at both ends, at one end it connects WMX481 and at the other ends it connects to the remote controller or GCS which have a SP13 Male connector.
Connection with SATPRO tracker antenna: WMX481 is connected through an RCBUS cable of approximately 0.5 meters with a 3.5mm male jack connector on one end and this connects directly to the RCBUS port with a 3.5mm female jack connector of antenna tracker SATPRO.CONTENT:
x1. WMX481 + (MX433 or BQ89 antenna, according to selected option).
x1. WMX481 + (MX433 or BQ89 antenna, according to selected option).
Delivery date: Can be shipped within 7-10 days.
| Weight | 1,5 kg |
|---|---|
| Frequency | 433Mhz, 863-950Mhz |
| RF Power & Sensitivity | 1000mW (+30dBm) | -116dBm, 500mW (+27dBm) | -110dBm |
| Antenna | BQ89 (Biquad antenna 866-920Mhz, 9dBi), MX433 (Moxon Rectangle Antenna 400-480Mhz, 5.5dBi), No, without B89 |
| Connection and Communication with | XLRS Remote Controllers, GCS, etc… with SP13 male connector (3Pins), SATPRO tracker antenna with female jack connector |
