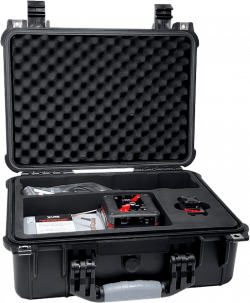

XVID3V2_1G2. Analog video system long range of 1.2Ghz (25-40Km).
1.138,50€ – 1.364,90€
Is a professional analog video system prepared for all types of applications FPV to work between 25-40Km (LOS) with antennas included in the kit, or 100km with high gain parabolic antennas.
Click here to see more information
Delivery date: Can be shipped within 15-20 days.
If you need an urgent delivery time, select option urgent manufacturing.
* The image information shown on this page, are only referential and may differ from the final product.
* The ranges shown are estimates and in optimal conditions.
| Weight | 3,5 kg |
|---|---|
| Dimensions | 600 × 450 × 200 mm |
| Antenna | BQ12. (Biquad Antenna 1.2Ghz, 9dBi) |
| Tripod for Antennas | No, TRI270. Tripod for antennas (2.7m, max load: 25kg) + Transport bag (+98€). |
| Urgent Manufacturing | No, Yes |
* The final content of the product will depend on the options selected.
x 1 RXVID3V2 (1.2Ghz). Analog video receiver.
x 1 XOSD3B (1.2Ghz). OSD with analog video transmitter 1W.
x1 BQ12. (Biquad Antenna 1.2Ghz, 9dBi).
x 2 ANTGSM12. Omnidirectional antenna 1.2Ghz 5dBi.
x 1 ANTGSM58. Omnidirectional antenna 5.8Ghz 5dBi.
x1 CABLE_PX_XOSD. Adapter cable for pixhawk and XOSD (Mavlink Telemetry)
x1 LAT54_SMAH/SMAM. Cable SMA-Female to SMA-Male, 540mm.
x1 CABLE_SERVO_HH. Cable Servo RC Female to Female.
x1 CABLE_EXT_SERVO_MH. Extensor Cable Servo RC Male to Female.
x 1 CABLE_MJ/2xMRCA. Cable Audio Stereo Male MiniJack 3.5MM / 2x male RCA Connector 1,5m.
x 1- CABLE_USB/MICROUSB. Cable USB-A Male to Micro USB-B Male, 2m.
(Optional) x1 TRI270. Tripod for antennas (2.7m, max load: 25kg) + Transport bag.
