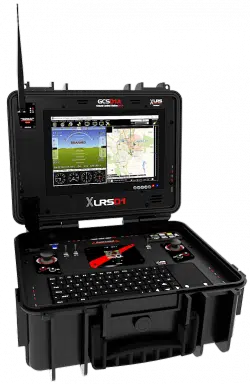

GCSD1A. Professional Ground Control Station D1 with integrated radio.
2.490,00€ – 3.579,00€
Prepared for automatic missions, integrated PC and radio control XLRS system with gamepad-type joysticks that can be used in case manual control is required.
Get more information about the product:
Delivery date: Can be shipped within 60 days.
Product reservation: To make the reservation of this product, add the product to the cart and make the payment.
*The images and information is preliminary, it is possible that the final product has changes.
| Weight | 7 kg |
|---|---|
| Dimensions | 480 × 350 × 350 mm |
| Frequency | RF Power | Sensitivity | Antenna | 433Mhz | 1W (+30dBi) | -116dBm | WY400-6N. UHF Base Station 6 elements Yagi Antenna 400-470Mhz, 8.85-11dBi., 433Mhz | 500mW (+27dBi) | -110dBm | MX433. Moxon Rectangle Antenna 400-480Mhz, 5.5dBi., 866-950Mhz | 1W (+30dBi) | -116dBm | BQ89. Biquad antenna 866-920Mhz, 9dBi, 866-950Mhz | 500mW (+27dBi) | -110dBm | BQ89. Biquad antenna 866-920Mhz, 9dBi |
| RC - Drone Simulator | No, Yes. Aerosim, Flight Simulator for Remotely Controlled Aircraft (Support 12 CH) (+136€). |

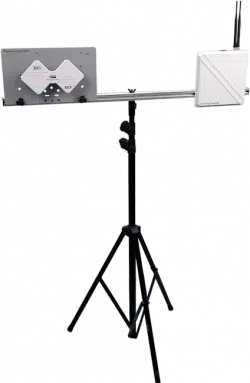

| Tripod for Antennas | No, TRI270. Tripod for antennas (2.7m, max load: 25kg) + Transport bag (+98€). |
| Tripod for GCS | No, Yes. Tripod and reinforced anchor for GCS (+380€). |
