GCSD1A
New and economic long-range Ground Control Station, oriented to automatic flights without video.
A minimalist and elegant design that will not leave you indifferent.
Versions:
Two versions with RF ranges of 100Km or 200Km LOS. Interchangeable 6th Generation RF module.
For UAV or DRON. Although it has mini joysticks, it can be used
well with an airplane due to the incremental throttle joystick system.
PC with windows 10 and mission planner or Qground control installed.
10″ screen, high brightness, Full HD.
QWERTY keyboard with built-in PAD.
You don’t need a laptop, in the GCSD1A you have everything you need and well protected to transport it.
A connector panel with Ethernet, USB 3.0, USB 2.0, SPPM (master/student) and input for charger and battery balancer.
The remote control is an XPAD1 adapted to the suitcase. It has a microcontroller independent of the PC.
LiOn battery for 3-4 hours, supplied with charger.
A robust and waterproof suitcase with the right size to facilitate transport.

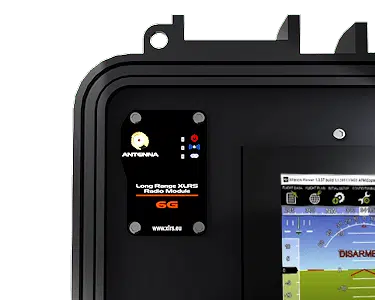

RF System
Note: Since 2024, the radio is separated into the WMX481 module + BQ89 Biquad Antenna, this way it can be placed on a tripod or SATPRO tracker antenna to have more range.
The RF system is a 6th Generation module, interchangeable with SMA connector.
A 5dBi omnidirectional antenna can be connected directly or via low loss cable to a higher gain unidirectional antenna such as the BQ89, to increase range.
Two frequency bands to choose from:
313Mhz to 470Mhz
863Mhz to 950Mhz
It admits to work in several RF bands to adapt to the regulations of the country.
RF power: 500mW or 1W to choose.
It complies with CE regulations for Europe, FCC for America and ETA for India.
Desing
A clean, simple and effective design.
Epoxy painted aluminum finish.
RXLRS RC Receiver
It uses the long-range RXLRS receiver, prepared for servo control, connection with autopilot and Mavlink or transparent telemetry.
It complies with CE regulations for Europe, FCC for America and ETA for India.
128-bit AES encryption to prevent transmitter spoofing or unauthorized drone takeover.
FHSS, Frequency Hopping Spread Spectrum, allows multiple channels to interfere and the system remains immune.
The RF (radio) system works on a network, with 32-bit IP addressing similar to that of the Internet. This allows you to select networks and sub networks for your fleet of drones or UAVs.
Prepared to connect an additional receiver and work in diversity x 2 and redundant mode in two different bands or in the same one. This makes the system more immune to interference in one RF band. More info receiver…
XLRS Shop
The new XLRS products 2022 are already available in the XLRS shop, select the XLRS system you need and make your reservation.
Still not subscribed to the XLRS newsletter? Subscribe to the newsletter to receive information on all the news!!
The web pages with detailed information and more interesting articles are not public, you will need to Register to see all the articles of the Blog. Really worth it.
Note: This information is preliminary and there may be changes when the equipment goes into production in 2022.
