KITD5STRR_002. Full XLRS System (250Km), Redundant Radio Control & Mavlink Telemetry 250Km, Digital Video Full HD 150Km with GCSD5, SATPRO, WMX481R-V2…

Complete XLRS kit that contains several XLRS devices to have a redundant system on the same frequency, it can be 863-950Mhz or 433Mhz, that is, it has two TX modules and two RX modules working in redundancy.

With this set you can get Radio Control & Telemetry 863-950Mhz or 433Mhz up to 250Km (LOS) and 2.4Ghz Digital Video up to 150Km (LOS).

On the ground: You have a Ground Control Station D5 along with the tracker antenna that will have the two redundant TX modules and the RX digital video module, along with a auxiliary small XPAD1W controller that will be connected via Wifi (It can be used in case of takeoff and landing for example).

In the Drone, UGV, USV…: You have two redundant RX modules along with the digital video transmitter.

Get more information about the products:

Ground Control Station D5

SATPRO. Professional Smart Antenna Tracker.

XVHD_SAT. Digital Video System

XPAD1W. Small Remote Controller

Content:

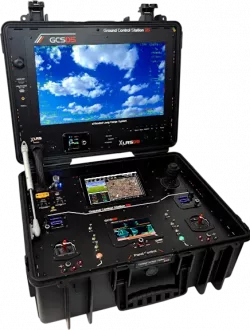

x1 GCSD5. Ground Control Station D5.

x1 WMX481R-V2. Redundant transmitter radio module for connection and communication with XLRS Remote Controllers (863-950Mhz, 1W, -116dBm).

x1 RXLRSR-V2. (Redundant Mode) Professional RX, Radio Control, Mavlink Telemetry / Transparent Data Link, FHSS, AES128 Encryption, 8CH, SPPM, SBUS, RCB, SMA-F, USB,
(863-950Mhz, 1W, -116dBm).

x1 XVHD-150. Full HD Digital Video system (XVTR & XVRE) for 150Km (LOS), x1 HDMI, x1 Ethernet, ODFM, H264/H265, AES128 Encryption, (2.4Ghz, 4-8W).

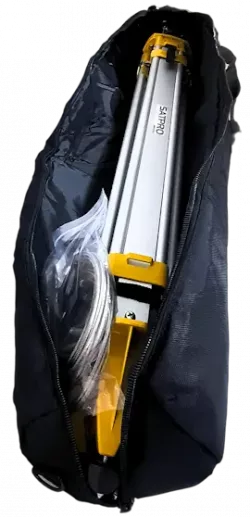

x1 SATPRO_28480. Professional Smart Antenna Tracker with SJJ32 Tripod.

x1 XPAD1W. Small Remote Controller, Radio Control, Wifi, USB. (Without XLRS Radio).

Delivery date: Can be shipped within 45-60 days.
