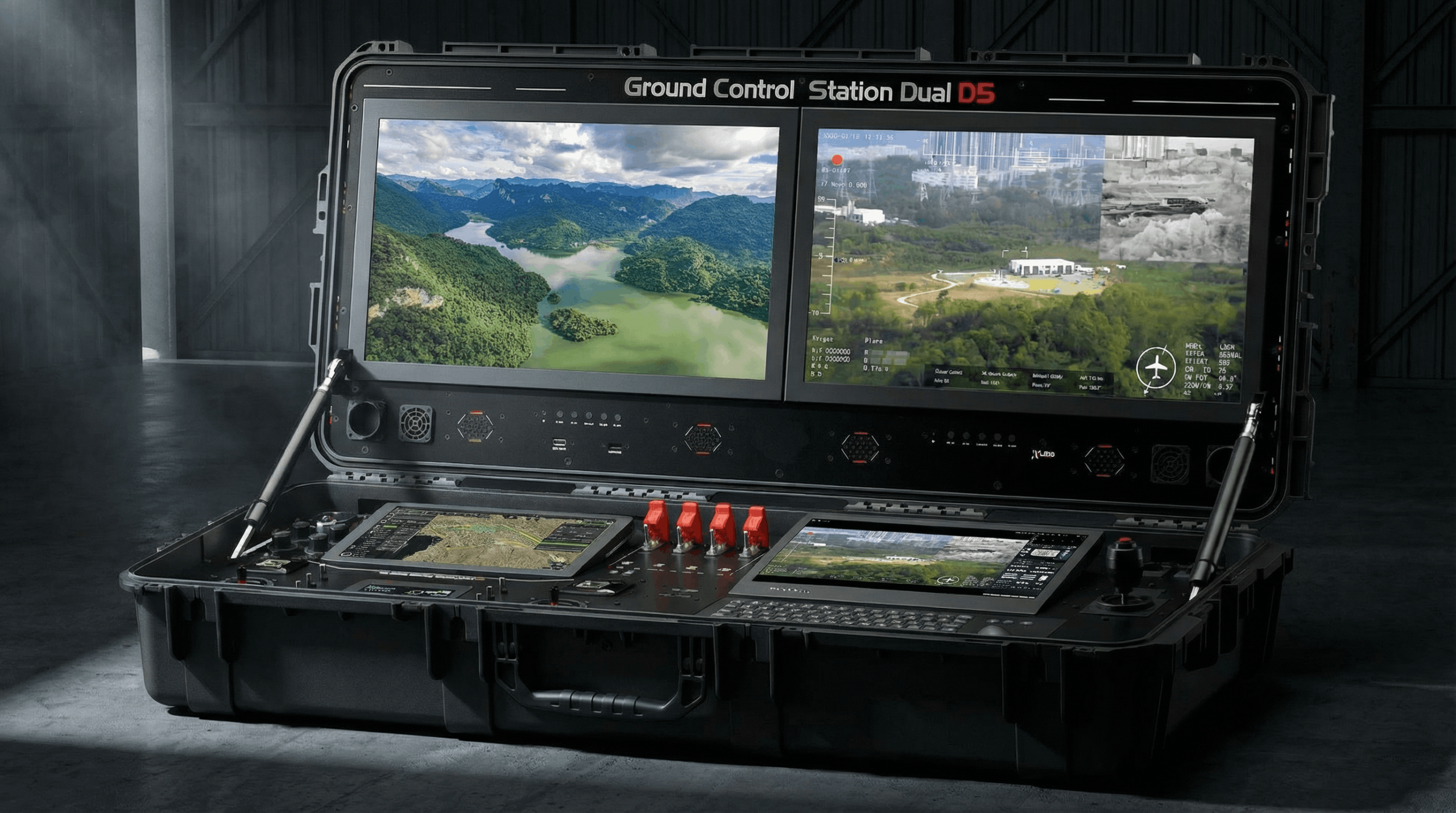

GCSD5DUAL. Ground Control Station D5 DUAL.
Ground Control Station D5 DUAL for Radio Control, Mavlink Telemetry / Transparent Data Link, Video, Maps and Navigation for all types of applications with Aerial, Land or Maritime Vehicles.
Standard or customized, if you need a customized GCSD5 DUAL, send an email to sales@dmd.es.
With Data Link XLRS system or without Data Link so you can connect it to your preferred system.
Latest generation Radio Control and Long Range Telemetry up to 250Km, Full HD video up to 150Km for XLRS systems.
For Pilot and co-pilot or observer with quality RC joysticks and lots of buttons, dials and switches for demanding control.
This product has the same technology as the GCSD5 to view preliminary information on this product access the following links:
GCSD5. Ground Control Station D5.

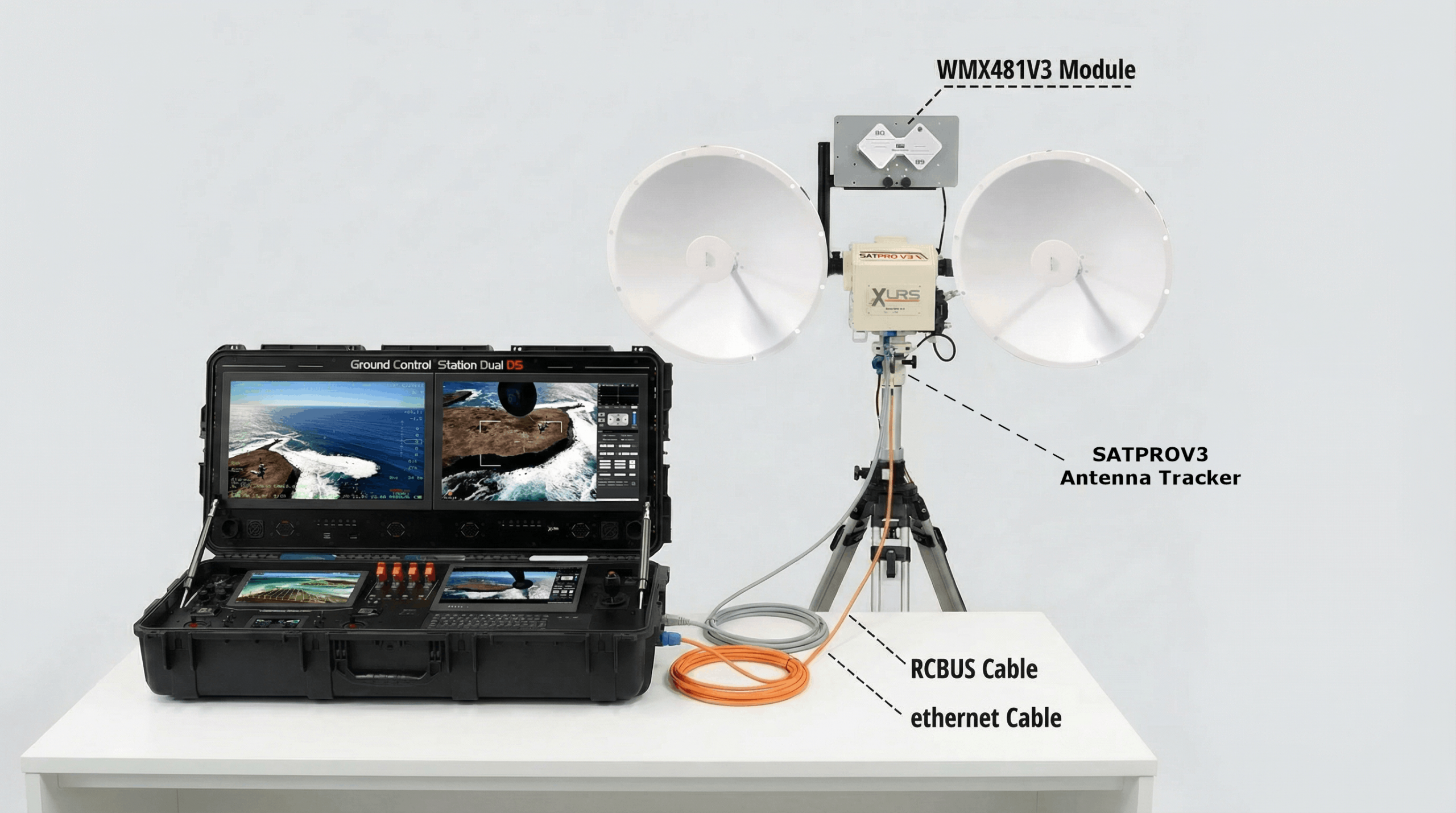

SATPRO. Professional Smart Antenna Tracker.
Delivery date: Can be shipped within 60-90 days (Depending on the options selected).
*Tablet not included.
*The images and information is preliminary, it is possible that the final product has changes.
| Weight | 34 kg |
|---|---|
| Dimensions | 510 × 419 × 215 mm |
| Radio System | 863-950Mhz | WMX481 | 500mW (+27dBi) | -110dBm | BQ89. Biquad antenna 866-950Mhz, 9dBi., 433Mhz | WMX481 | 1000mW (+30dBi) | -116dBm | MX433. Moxon Rectangle Antenna 400-480Mhz, 5.5dBi., 433Mhz | WMX481 | 500mW (+27dBi) | -110dBm | MX433. Moxon Rectangle Antenna 400-480Mhz, 5.5dBi., 863-950Mhz | WMX481 | 1000mW (+30dBi) | -116dBm | BQ89. Biquad antenna 866-950Mhz, 9dBi., No, to connect another telecommunications system through the SPPM signal (Up to 16 RC channels). |
| Video System | No, XVHD15. Digital video system | 2.4Ghz | 1080 | HDMI | 15Km., XVHD100. Digital video system | 2.4Ghz | 1080 | HDMI | 100Km., XVHD150. Digital video system | 2.4Ghz | 1080 | HDMI | 150Km., XVID3V2-1G2. Analog video system | 1.2Ghz | 80-100Km | ANT12G24DB. Grid Parabolic Antenna 1.2GHz 24dBi., XVID3V2-2G4. Analog video system | 2.4Ghz | 80-100Km | ANT24G24DB. Grid Parabolic Antenna 2.4GHz 24dBi., XVID3V2-5G8. Analog video system | 5.8Ghz | 80-100Km | ANT58G23DB. Grid Parabolic Antenna 5.8GHz 23dBi. |
| Tracker Antenna | No, SATPRO. Professional smart antenna tracker with SJJ32 tripod. |
