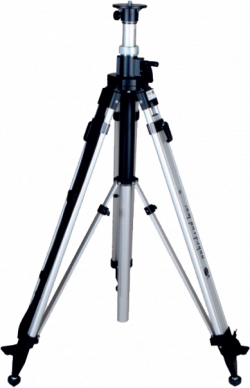

TRI276KIT. Reinforced Tripod + Peli 1770 Case with Custom Foam.

Dedicated tripod for use with SATPROV2 and SATPROV3 tracking antenna heads.

Engineered for maximum stability and durability in demanding field operations, this reinforced crank tripod is ideal for supporting heavy equipment such as high-gain directional antennas. The millimeter-graded elevator column allows for precise height adjustment, even under load.

Includes a rugged Peli 1770 transport case with custom foam designed to secure and protect the tripod in extreme environments.

FEATURES:

• Indirect crank drive for smooth and precise height adjustment

• Reinforced drive system for near wear-free continuous operation

• Anti-twist elevator column with concentric lock

• Reinforced aluminum legs with additional stability struts

• Swappable foot supports for optimal grip on different surfaces

• Millimeter-graded elevator travel: 910 mm

• Minimum working height: ~1.13 m

• Maximum working height: ~2.76 m

• Transport length: ~1.28 m

• Approx. weight: ~9.3 kg

• Mounting screw: 5/8″ thread

• Flat base diameter: Ø110 mm

CONTENT:

• 1x Reinforced tripod TRI276

• 1x Peli 1770 transport case with custom foam insert for TRI276

* The images shown on this page are only referential and may differ from the final products.
* Antennas not included.
