GCSD4RSV2 (GCSD4RV2 + SMBTS)

PORTABLE GROUND CONTROL STATION D4

WITH

SMART BASE STATION

Long Range. ¡More than 200Km!

RADIO CONTROL AND TELEMETRY 433, 868, 902, 915, 950Mhz

READY FOR ANALOG OR DIGITAL VIDEO



Starting from 4.229€

The prices on the official website should be taken as a reference only. Visit the DMD online Shop to see updated prices.

SMBTS

Smart Base Station

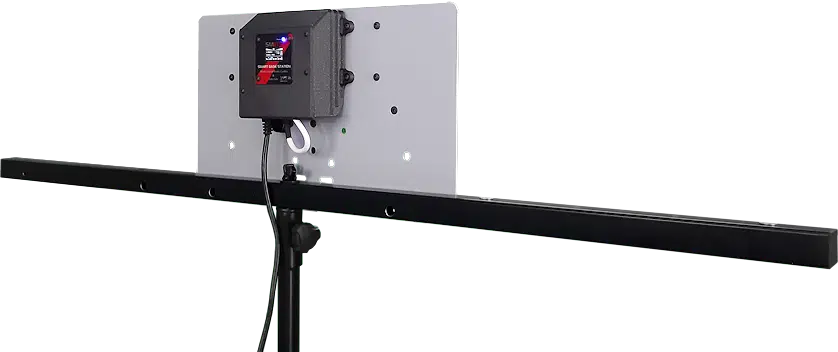

SMBTS is a transmitter of Radio Control and Telemetry mounted on a biquad antenna of 12dBi (BQ89) that significantly improves performance, safety and range in GCSD4-V2, so you can place the antenna further and without loss of RF.

To the whole (SMBTS + BQ89) we call it Smart Antenna.

EVLOS, BVLOS and NLOS.

SMBTS is compatible only with GCSD4V2 or higher versions.



If you need more features and security, use SMRBTS (Smart Redundant Base Station) is a redundant system with two transmitters on different channels or simultaneous dual band.

Connection for Smart Antennas



The Smart Antennas SMBTS (Smart Base Station) and SMRBTS (Redundant Smart Base Station) are connected with a CAT5E ethernet cable or higher to GCSD4V2, the cable can measure from 3 to 10m or more allowing a more comfortable installation of the antennas, especially in vehicles or for another type of application that needs to have the antennas away from GCSD4V2.

Maximum range improvement with SMBTS



Using SMBTS we have avoided RF losses that had the previous GCSD4V1, when the antenna was connected using the coaxial cable.



Now we win up to 2 or 3dB and with the biquad antenna (BQ89) we have up to 12dBi comparing with the 6dBi of the SMP-4G-LTE patch or 9dbi for the SMP-918 patch that is no longer manufactured. Obtaining a gain of 7-8dB that improve the range and almost doubling the current one.

Increase range of system



With the antenna (BQ89) you can easily add one or two biquad elements increasing the total gain of the antenna and therefore the range of the XLRS system.

Consult the current regulations of your country to correct the maximum power allowed in the transmitters.



Available in a few weeks, consult in dmd@dmd.es.

200Km Range





Extraordinary range of professional Radio Control and telemetry in the free ISM band. 200Km or more depending on the installation and conditions.
Different options with a scaling range (100 and 200km) with prices that fit your budget.

TELEMETRY



Internal Radiomodem (Data Link) with Radio Control, MAVLINK and transparent protocols.



Interface: Mavlink data is available via USB-PC or via bluetooth of GCSD4-V2.



Compatible with RXLRS receiver, autopilots Pixhawk, APM, etc and software: Mission Planner, QGroundcontrol, etc.

DMDStudio



DMDStudio is the configuration and utilities software for all XLRS systems in Windows environment.

The same software is used for all XLRS devices. Once you learn how to configure or update a device, you can configure almost all devices, except for the differences of each device.



Update firmware of the device, accesing the BOOT tab (DS/SYS/BOOT).



Read more…

Espectro_868_MIX_06

Radio Module XLRS 5th Generation



5th generation XLRS radio of Digital Micro Devices. We are the manufacturer of RF module.

Multi-band ISM: 866Mhz, 868Mhz, 902, 915Mhz, 950Mhz or 433Mhz (optional).

Power: 500 or 1000mW (according XLRS licenses).

Sensitivity: -110 or -116dBm (accoding XLRS licenses).

Modulation: 50 or 100Kb. FHSS (Frequency Hopping Spread Spectrum).

Controlled temperature.



Read more…
