2022 comes with a lot of news for the XLRSD1 line.

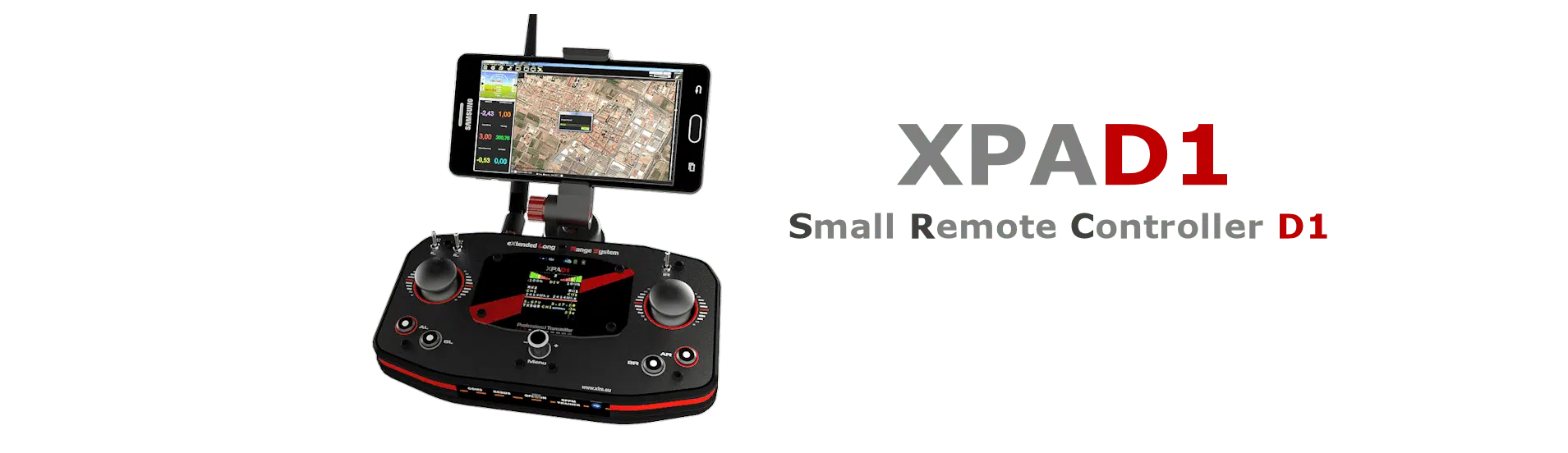

New XPAD1 is a small Radio Control (RC) + Telemetry transmitter, but no less powerful, from 313Mhz to 950Mhz, 500-1000mW with mini joysticks and a color IPS display.
Portable and long range.
The MiniJoystiks are prepared to control drones or planes with progressive throttle.
Allows the transfer of control of the UAV between pilots.
Mavlink or Transparent telemetry.
A powerful radio modem of 6th Generation allows a maximum range of 100km.
As a radio control system, it is designed for working ranges of 25km.
Suitable when you have little room to transport and need a long range transmitter at a good price.
Serves as XLRS Remote Controller economical, simple and small, as auxiliary RC control of the GCS (Ground Control Stations) for camera operator, 2nd transmitter to land or take off from a base station or transmitter for 2nd pilot sharing the Ground Control Station, GCSD4 or GCSD5.
Prepared to anchor a Smart Phone or an Android tablet. WiFi connection.
Connection to Windows PC via USB or Wi-Fi, configurable from DMDStudio and compatible with Mission Planner, QGroundControl, UgCS…
1.5″ color TFT IPS display.
Encoder with button for menu and parameters.
2 MiniJoys, 4 buttons, 2 switches and a 3-position switch.
3.7V/2400mA LiPo battery. Duration up to 5 hours. USB charging.
Audio: 1W speaker.
Connectors:
- USB: To charge battery, update firmware, Mavlink telemetry, PC connection for data, etc.
- SPPM: PWM output for simulator, secondary RC, TEACHER-STUDENT(Trainer).
- RCBus: Communications, secondary XPAD, extensions.
- COM5: Auxiliary serial port. Mavlink etc.
The WIFI allows several simultaneous connections.
By WIFI, you can connect with:
- SAT: Smart Antenna tracker and pilot with all the power and range possible.
- GCSD4 or GCSD5 Ground Control Stations, as camera controller or auxiliary RC control.
- PC with Mission Planner or Qground control.
- Tablet or Smart Phone.
XLRS Shop
The new XLRS products 2022 are already available in the XLRS shop, select the XLRS system you need and make your reservation.
Still not subscribed to the XLRS newsletter? Subscribe to the newsletter to receive information on all the news!!
The web pages with detailed information and more interesting articles are not public, you will need to Log in or Register to see all the articles of the Blog. Really worth it.
Note: This information is preliminary and there may be changes when the equipment goes into production in 2022.
[grwebform url=”https://app.getresponse.com/view_webform_v2.js?u=QQJMl&webforms_id=47531405″ css=”on” center=”off” center_margin=”200″/]
About author
4 comments on “XPAD1, Small Remote Controller, New XLRS product for 2022!”
Chema
Me gustaría saber si también transmite señal de video digital HD o analogico
VG_DMD
Buenos días Chema,
El XPAD1 es un transmisor pequeño de Radio Control y Telemetria de largo alcance que puede tener alcances de trabajo 15-30Km y máximo 100Km, no tiene integrado el sistema de vídeo.
Se puede conectar directamente a un PC por USB o teléfono móvil / Tablet por Wifi para enviar / recibir la telemetría a través de un software de mapa como Mission Planner, QGroundControl o similar que funcionen con el protocolo Mavlink.
Si necesita sistema de vídeo, tendrá que utilizar un sistema de vídeo por separado, es posible que añadamos un accesorio para poder acoplar un monitor FPV de 5.8Ghz y así pueda obtener el vídeo analógico desde el transmisor de vídeo XOSD3B (5.8Ghz).
Para mas adelante tenemos en mente diseñar un transmisor XLRS completo que tenga integrado el Radio Control, Telemetria, PC y Receptor de Vídeo Digital todo en un único dispositivo XLRS.
Si necesita mas información, háganoslo saber.
DavidPhamb
Hi, I wanted to know your price.
VG_DMD
Dear David,
You can see the prices from the XLRS store: https://d3.xlrs.eu/product-category/d1-remote-controller/
If you need more information or have any questions about the XPAD1 system, let us know.
You can also send us an email to sales@dmd.es
