2022 comes with many new features for the D1 line.
In this article we will review the D1 product changes and the new products. More info D1 Line.
Manufacturing Note: Products are made to order as there is quite a bit of variety and choice. The parts are usually in stock and when the customer places the order with their options, the product is finished assembling, configured and tested according to the specifications of the order.
New features and updates to XLRS D1 systems:
The D1 line has the most economical products with a good quality-performance-price ratio.
New and upgraded products feature 1.5″ color IPS displays with encoder for menu and parameters.
They are more robust and somewhat larger than the old versions. It is because they incorporate a larger color display, have a battery and more external connections.
They have WIFI with several simultaneous connections to connect without cable with PC, Smart Phone or tablets.
They incorporate the new 6th generation RF modules.
RF range: 25-50km of work. Maximum range: 100km. 200Km range option.
Updated Products for 2022:
• DL1 V2.
• BTSD1 V3.
New products:
• XPAD1.
• GCSD1A.
We are still preparing information on some new products…
• REPD1
• REPFD1

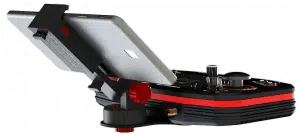

[ps2id id=’XPAD1′ target=”/]XPAD1:
New XPAD1 is a Radio Control (RC) + Telemetry transmitter that is small and economical but no less powerful, from 313 to 950Mhz with mini joysticks and a color IPS display.
The most economical and smallest XPAD in size. Suitable when you have little space for transport.
It serves as an economical, simple and small XLRS transmitter, as auxiliary control of the GCS (Ground control Stations) for camera operator, 2nd transmitter to land or take off from a base station or transmitter for 2nd pilot sharing base station or XPAD3.
Prepared to anchor a Smart Phone or an Android tablet. Wi-Fi and USB connection.
Can be used with airplanes as the throttle can be set. It is progressive and with this functionality prepared.
3.7V/2400mA LiPo battery. Duration up to 5 hours. USB charging. More info XPAD1.
GCSD1A. Ground Control Station D1 A:
New and economic Long-Range Ground Control Station, oriented to automatic flights without video.
A minimalist and elegant design that will not leave you indifferent.
Competitive price from €2490.
Versions:
Two versions with RF ranges of 100Km or 200Km LOS. Interchangeable 6th Generation RF module.
We have incorporated mini joysticks, buttons and switches to allow manual piloted flights, since some pilots prefer to take off and land manually, they are also useful for test flights or emergencies.
For UAV or DRON. Although it has mini joysticks, it can be used well with a plane due to the incremental throttle joystick system.
PC with windows 10 and mission planner or Qground control installed.
10″ screen, high brightness, Full HD.
QWERTY keyboard with built-in PAD.
You don’t need a laptop, in the GCSD1A you have everything you need and well protected to transport it.
A connector panel with Ethernet, USB 3.0, USB 2.0, SPPM (master/student) and input for charger and battery balancer.
LiOn battery for 3-4 hours, supplied with charger.
A robust and waterproof suitcase with the right size to facilitate transport.
RF power: 500mW or 1W to choose.
It complies with CE regulations for Europe, FCC for America and ETA for India.
[ps2id id=’DL1V2′ target=”/]Data Link DL1 V2:
Data Link for long-range telemetry for drones and UAVs with 1.5″ IPS display and encoder for Menu and data.
From 313 to 950Mhz and 500mW of power with a range of 100km.
It is an economical but powerful option for fully automatic flights controlled from PC, Smart Phone or tablet with Mission Planner or Qground control.
Basically prepared for Mavlink Telemetry or transparent in drone, UAV, AGV, robot or heavy machinery environments.
If you need it you can incorporate PC Joysticks for Mission Planner, it is not the best RC control but sometimes it can be useful and it is cheap.
It has WIFI and battery up to 5h. AES encryption and FHSS frequency hopping. More info DL1 V2.

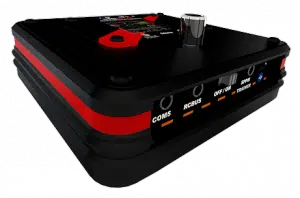

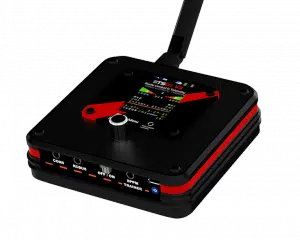

[ps2id id=’BTSD1V3′ target=”/]Data Link + Radio control BTSD1 V3:
New Data Link + Long Range Radio Control System for drones, UAV, AGV.
SPPM connection to standard RC transmitter and to PC, smart phone or tablet via USB or WIFI.
AES encryption and FHSS frequency hopping.
It has a 1.5″ IPS display and encoder for menu and configuration.
5h battery, USB charging.
It is a similar option to the Data Link DL1 V2 but with the addition of an SPPM or PWM input to connect a standard RC transmitter.
Compatible with Mavlink or transparent protocol, to be used with Mission Planner, Qground control or similar.
It uses the RXLRSD1 high performance long range RC receiver with standard servo outputs, SPPM for autopilot connection, RCBus and TTL serial port for telemetry. More info BTSD1 V3.
Still not subscribed to the XLRS newsletter? Subscribe to the newsletter to receive information on all the news!!
Up to here the news in general for today, please be attentive to the successive emails so as not to miss what is to come next year.
