PX2CUBNGP3. Pixhawk 2.1 Autopilot Combo Set (Cube Orange + GPS here 3 GNSS).

This is a new Pixhawk flight controller set including orange cube and the ADS-B carrier board. This open source autopilot adopting more powerful H7 processor, featuring triple redundancy IMU system and vibration dampening system.The anti-jamming performance and stability are greatly improved. Carrier Board with an integrated 1090MHz ADS-B receiver, allowing the software to receive information about the location of manned aircraft in the area, that effectively improve the flight safety of UAV.

Here 3 GPS is a new version based on the Here 2 GNSS GPS unit. Compared with the Here GNSS GPS unit, the Here 3 GPS module features more accurate positioning, faster response, and colored LED lights for visible indication of UAV status.

Compatible with XLRS and XVID systems.

New Features:

• Cube Orange:

  • Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple redundant sensors, temperature control shock absorption IMU.

  • Separate IMU and MFU, reduces sensor interference.

• • Uavionix ADS-B Receiver.

  • With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multirotor and turn it into a more professional UAV platform.

• ADS-B Carrier Board:

  • A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.

  • Receives information such as position, altitude, speed, etc. which can all be viewed in Mission Planner.

  • Through settings, you can optionally set up your cube to allow the drone to automatically avoid aircraft that are within an exclusion zone.

• GPS Here 3:

  • Accuracy: 3D: 2.5 meters / RTK 0.025 meters.

  • Processor: STM32F302.

  • IMU sensor: ICM20948.

  • Concurrent reception of up to 3 GNSS (GPS, GLONASS, BeiDou).

  • Advanced inhibitor detection and signal spoofing.

  • CAN port.

  • Status RGB LEDs.

  • Accelerometer/ Gyro/ Barometer / Compass.

  • 8Hz refresh rateBuilt-in IMU H.

• General Pixhawk 2.1 Cube Key Features:

  • Built-in IMU Heating system, allowing flights at extreme temperature(-10°C~+55°C)

  • Robust DF17 Interface connectors give enhanced drop and shock resistance.

  • Aircraft: VTOL, Multicopter, Helicopter, Plane, General Robotics

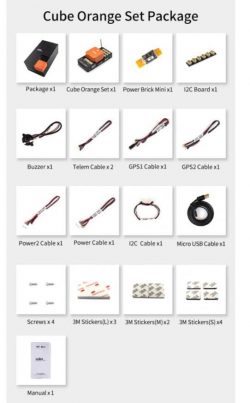

CONTENT:

(Cables for accessories are JST to DF13 cables which are compatible with old pixhawk accessories, such as Telemetry, Power Brick or GPS):

x1 PIXHAWK2.1 Cube Orange.

x1 PIXHAWK2.1 Standard Set ( ADS-B Receiver).

x1 GPS Here 3.

x1 POWER Brick Mini.

x1 SD Card(inserted in Cube).

x2 TELEM Cable.

x1 POWER Cable.

x1 I2C Cable.

x1 BUZZER Cable.

x1 MICRO USB Cable.

x1 GPS1 Cable(with saftey switch).

x1 GPS2 Cable.

x1 I2C Splitter.

x4 Mounting Screws(M2.5*8).

x1 3M Double Sided Foam Tapes.

Note: Telemetry cables are modified to connect Plug & Play with compatible XLRS devices and Pixhawk Cube autopilot is tested and preconfigured to work with XLRS systems.

Delivery date: Can be shipped within 3-5 days.
