XVID3B. Analog video system long range (25-40Km).

930,00€ – 1.208,90€

Is a professional analog video system prepared for all types of applications FPV to work between 25-40Km (LOS) with antennas included in the kit, or 100km with high gain parabolic antennas

Click here to see more information

XVID3B-2G4 Datasheet

XVID3B-1G2 Datasheet

XVID3B-5G8 Datasheet

Delivery date: Can be shipped within 15-20 days.
If you need an urgent delivery time, select option urgent manufacturing.

* The image information shown on this page, are only referential and may differ from the final product.

* The ranges shown are estimates and in optimal conditions.

* Note: Analog video systems with powers greater than 25mW or 100mW at 2.4Ghz shouldn’t be used in Europe, except authorized users. An RF attenuator can be included in the output of the video transmitter to comply the standards of each country.

SKU: N/A

Categories: All Products, XLRS Products, XVID FPV Analog Video

Additional information
CONTENT

Additional information

Weight	3.5 kg
Dimensions	600 × 450 × 200 mm
Frequency	1.2Ghz, 2.4Ghz, 5.8Ghz
Antenna	ANT24G24DB. (Grid Parabolic Antenna 2.4GHz, 24dBi), ANTPLA24G17DB. (Directional antennas 2.4Ghz, 17dBi), ANTPLA58G19DB. (Directional Antenna 5.8Ghz, 19dBi), BQ12. (Biquad Antenna 1.2Ghz, 9dBi)
Tripod	No, TRI270. Tripod for antennas (2.7m, max load: 25kg) + Transport bag.
Urgent Manufacturing	No, Yes

CONTENT

* The final content of the product will depend on the options selected.

x 1 RXVID3 (1.2Ghz or 2.4Ghz or 5.8Ghz). Analog video receiver.

x 1 XOSD3B (1.2Ghz or 2.4Ghz or 5.8Ghz). OSD with analog video transmitter 1W.

(According to selected antenna) x1 ANT24G24DB. (Grid Parabolic Antenna 2.4GHz, 24dBi) or x1 ANTPLA24G17DB. (Directional antennas 2.4Ghz, 17dBi) or x1 ANTPLA58G19DB. (Directional Antenna 5.8Ghz, 19dBi) or x1 BQ12. (Biquad Antenna 1.2Ghz, 9dBi)

x 3 ANTGSM24. Omnidirectional antenna 2.4Ghz 5dBi or x 2 ANTGSM12. Omnidirectional antenna 1.2Ghz 5dBi or x 2 ANTGSM58. Omnidirectional antenna 5.8Ghz 5dBi

x 1 ANTGSM58. Omnidirectional antenna 5.8Ghz 5dBi.

x1 CABLE_PX_XOSD. Adapter cable for pixhawk and XOSD (Mavlink Telemetry)

x1 LAT54_SMAH/SMAM. Cable SMA-Female to SMA-Male, 540mm.

x1 CABLE_SERVO_HH. Cable Servo RC Female to Female.

x1 CABLE_EXT_SERVO_MH. Extensor Cable Servo RC Male to Female.

x 1 CABLE_MJ/2xMRCA. Cable Audio Stereo Male MiniJack 3.5MM / 2x male RCA Connector 1,5m.

x 1- CABLE_USB/MICROUSB. Cable USB-A Male to Micro USB-B Male, 2m.

(Optional) x1 TRI270. Tripod for antennas (2.7m, max load: 25kg) + Transport bag.

XVID3B. Analog video system long range (25-40Km).

XOSD3B. OSD with analog video transmitter 1W.

MO7DVR-58. FPV Monitor 7”, 5.8Ghz 32CH, Diversity DVR (Recorder) + Removable Battery.

MO7-58. LCD monitor 7”, high definition, RX diversity 5,8Ghz 40CH, HDMI output, PAL.

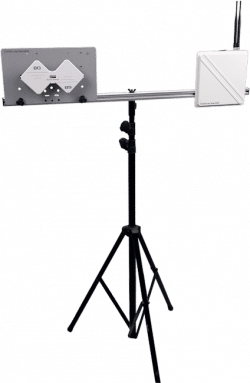

TRI270. Tripod for antennas, 2.7m, max load: 25kg.
