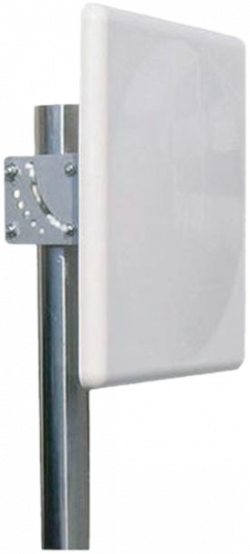

ANTDIR24G18DB. Directional Panel Antenna 2.4Ghz 18dBi.

Directional Panel Antenna 2.4Ghz 18dBi, adequate for reception of video in FPV ( Tested to 25Km ) and data Wifi. Connector Female N. The female N can need adapter to SMA.
Antenna of panel of tall profit, 18dBi.
Work with two possible polarizations.
Resistant box to the raciation UV.
Perfect base for a discrete link as much as customer same as for a little station.

ELECTRICAL DATA:

Frequency range: 2.400 – 2.500Mhz.

Gain: 18dBi.

Polarization: Horizontal or Vertical.

VSWR: <1.5.

Impedance (Ω): 50 Ohm.

Horizontal Beam Width: 20º.

Vertical Beam Width: 20º.

F/B Ratio: ≥20dB.

Max. Input Power: 100W.

Lightning Protection: DC Ground.

MECHANICAL DATA:

Dimensions (Approx.): 305 x 305 x 25 mm.

Weight (Approx.): 0.7Kg.

Connector: N-Female.

Mounting: Mast Ø40-Ø60 mm.

Radome Material: ABS.

Rate Wind Velocity: 210km/h.

Operating Temperature: -40℃ – +65℃.

CONTENT:

x1 ANTDIR24G18DB. Directional Panel Antenna 2.4Ghz 18dBi.

Delivery date: Can be shipped within 2-3 days.
